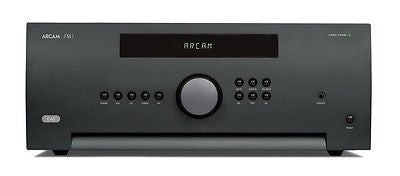

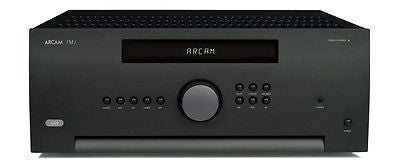

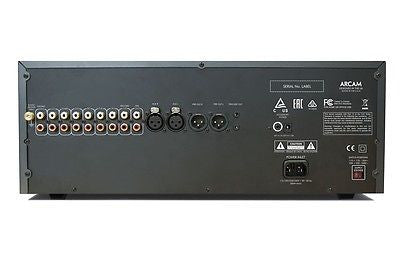

Arcam’s C49 pre-amplifier represents the pinnacle of Arcam’s audio engineering. We set out to incorporate everything we have learned in almost 40 years to deliver a pre-amplifier that will set new standards and provide class leading sound quality for the best possible reproduction of your music.
Drawing on the many years of amplifier design experience at Arcam, the C49 uses the best quality components and engineering practice to produce a product that will give many years of musical pleasure and reliable service.
The C49 features dual mono volume controls and a balanced signal path all the way though the product together with distortion nulling input multiplexers. Rest assured you will be hearing the music just as the artist intended.
There have been great strides made in improving audio sources and loudspeakers in recent years and the time is right to match them in the field of amplifier design. This ground breaking pre-amplifier is a must audition product for music lovers.
The C49 has been designed with system building flexibility in mind, allowing for the “ultimate” system of a C49 with six bridged P49s tri-amping the speakers.
With total clarity, the C49 uncovers a level of detail in the music you never realised was there!
Technical Specifications
Inputs - Phono (MM) cartridge
- Input sensitivity at 1kHz - 5mV
- Input impedance - 47kΩ +100pF
- Frequency response (ref. RIAA curve) - 20Hz-20kHz +/- 1dB
- Signal/noise ratio (Awtd) 50W, ref. 5mV input - 80dB
- Overload margin, 5mV at 1kHz - 20dB
Inputs
- Nominal sensitivity - 1V (RCA), 2V (XLR)
- Input impedance - 10kΩ
- Maximum input - 4.6V (RCA), 8.2V (XLR)
- Frequency response 20Hz-20kHz +/- 0.05dB
- Signal/noise ratio (Awtd) 50W, ref 1V input - 105dB
Preamplifier output
- Nominal output level - 1.15V (RCA), 2.3V (XLR)
- Output impedance - 47Ω (RCA), 200Ω (XLR)
P49
Power amplifier

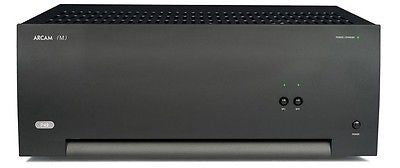

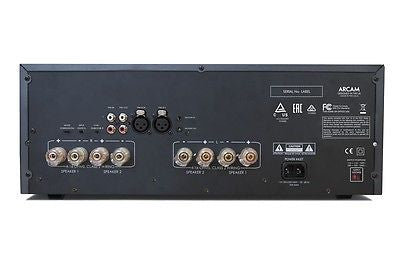

Arcam’s P49 power amplifier represents the pinnacle of Arcam’s audio engineering. We set out to incorporate everything we have learned in almost 40 years to deliver a power amplifier that will set new standards and provide class leading sound quality for the best possible reproduction of your music.
Drawing on the many years of amplifier design experience at Arcam, the P49 uses the best quality components and engineering practice to produce a product that will give many years of musical pleasure and reliable service.
With a class G amplifier, toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion and noise the P49 is capable of reproducing music with all its original authority and detail. Rest assured you will be hearing the music just as the artist intended.
The P49 has been designed to leapfrog the competition with a massive 200 watts per channel into 8 ohms and 400 into 4 ohms. It delivers 50 watts in pure class A mode while allowing for huge extra power reserves from our latest generation class G topology that is both clever and efficient. During normal operation, distortion is measured in less than one part per million so that this massive power is delivered with total control and finesse.
There have been great strides made in improving audio sources and loudspeakers in recent years and the time is right to match them in the field of amplifier design. This ground breaking amplifier is a must audition amplifier for music lovers who understand that power is nothing without control.
The P49 has been designed with system building flexibility in mind and can be configured as a traditional stereo power amp, bridged mode or dual mono mode allowing for the “ultimate” system of a C49 with six bridged P49s tri-amping the speakers.
This amplifier really does demonstrate why power is nothing without control.
Technical Specifications
Continuous power output, per channel, 8Ω
- Both channels driven, 8Ω,20Hz-20kHz, 0.2% THD - 200W
- Single, 4Ω, at 1kHz - 400W
Inputs
- Nominal sensitivity for 200W / 8Ω - 1.15V (RCA), 2.3V (XLR)
- Input impedance - 10kΩ
- Frequency response 20Hz-20kHz +/- 0.05dB
- Signal/noise ratio (Awtd) 50W / 8Ω - 110dB
General
- Power consumption (standby) - <0.5W
Dimensions & Weights
- W x D (inc. speaker terminals) x H (inc. feet) - 433 x 425 x 171mm
- Weight (net) - 18.0kg
- Weight (packed) - 19.7kg
EAN/UPC code
5 060133 602330
Headphones output
- Maximum output level into 600Ω - 4Vrms
- Output impedance - 1Ω
- Load range - 16Ω-2kΩ
General
- Power consumption (standby) - <0.5W
Dimensions & Weights
- W x D (inc. speaker terminals) x H (inc. feet) - 433 x 410 x 171mm
- Weight (net) - 8.7kg
- Weight (packed) - 10.4kg
EAN/UPC code
5 060133 602323
Retail $3,200.00 a pair.
