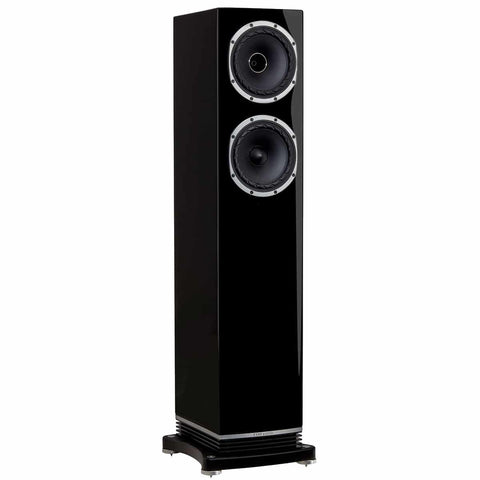

The award winning F501 is the smaller of the two floorstanding loudspeakers in the F500 series but capable of delivering low bass and effortless dynamics from a compact, small footprint cabinet. Bringing additional scale and power to the F500 Series’ signature clarity and articulation, the 150mm (6″) proprietary IsoFlareTM driver is accompanied by a matched 150mm (6″) bass driver. The IsoFlareTM driver delivers isotropic energy radiation with point source constant directivity providing outstanding stereo imaging, even off axis. Ideal for small to medium-sized rooms, the F501 is supplied with a dedicated plinth incorporating our BassTraxTM Tractrix diffuser system, which integrates bass energy uniformly into the room

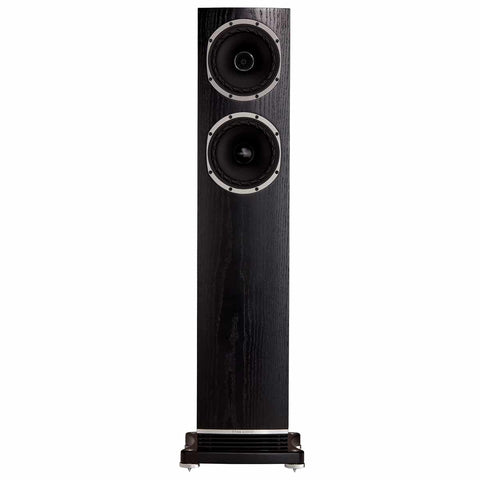

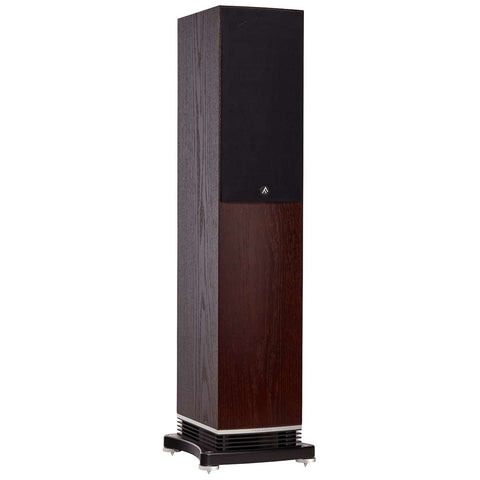

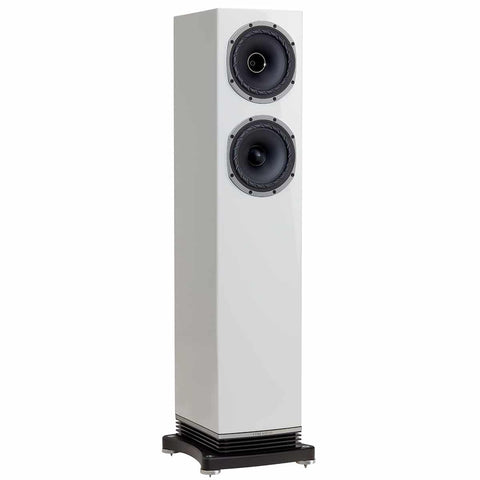

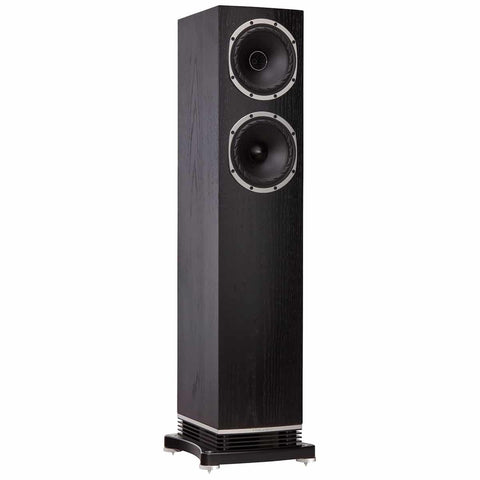

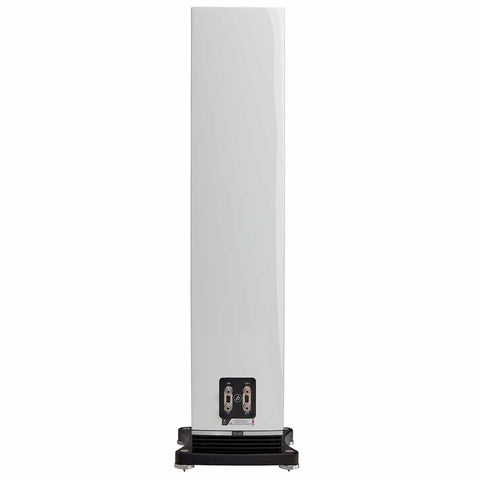

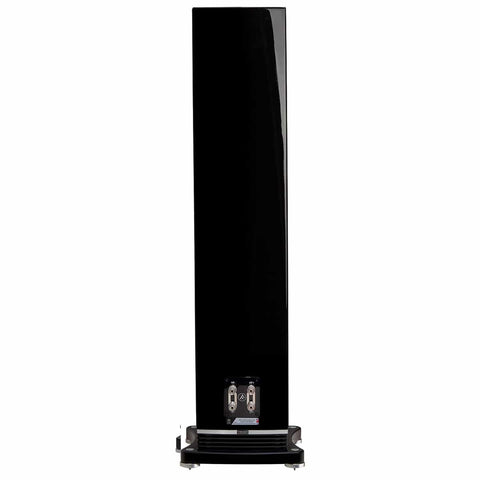

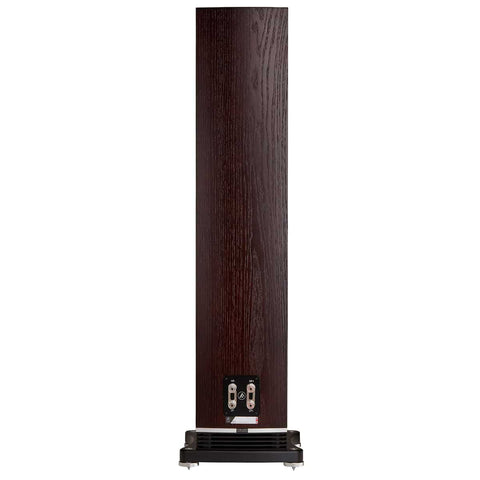

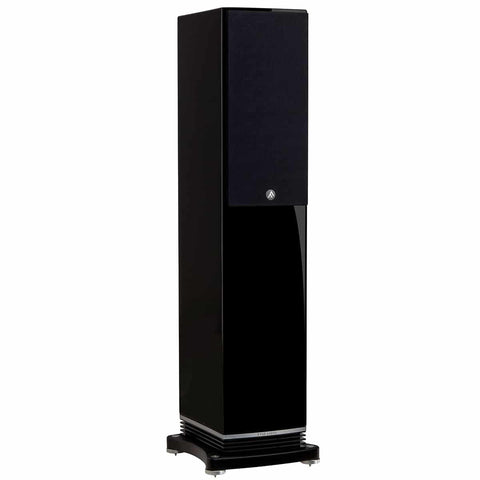

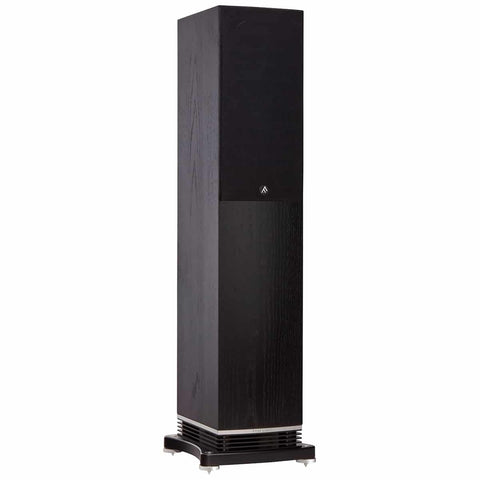

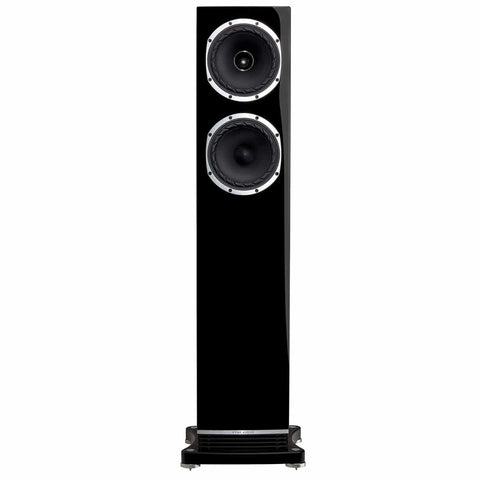

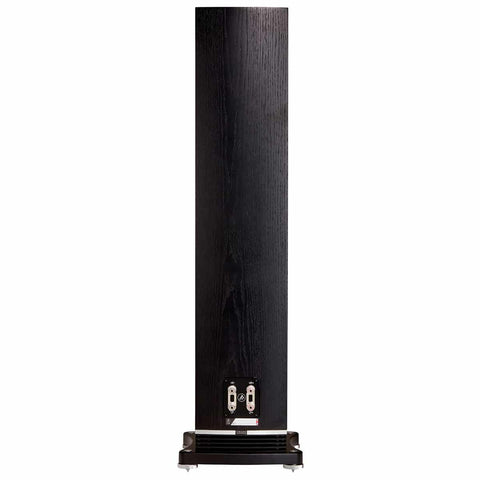

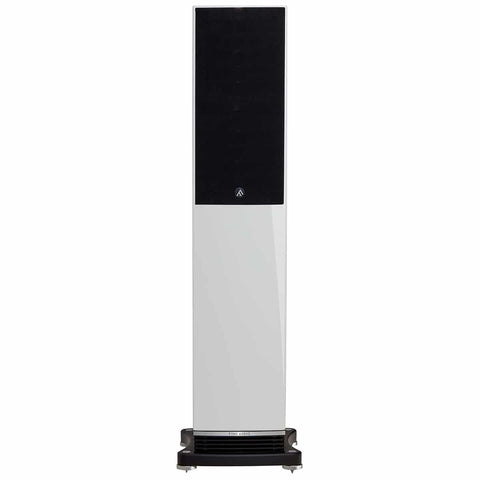

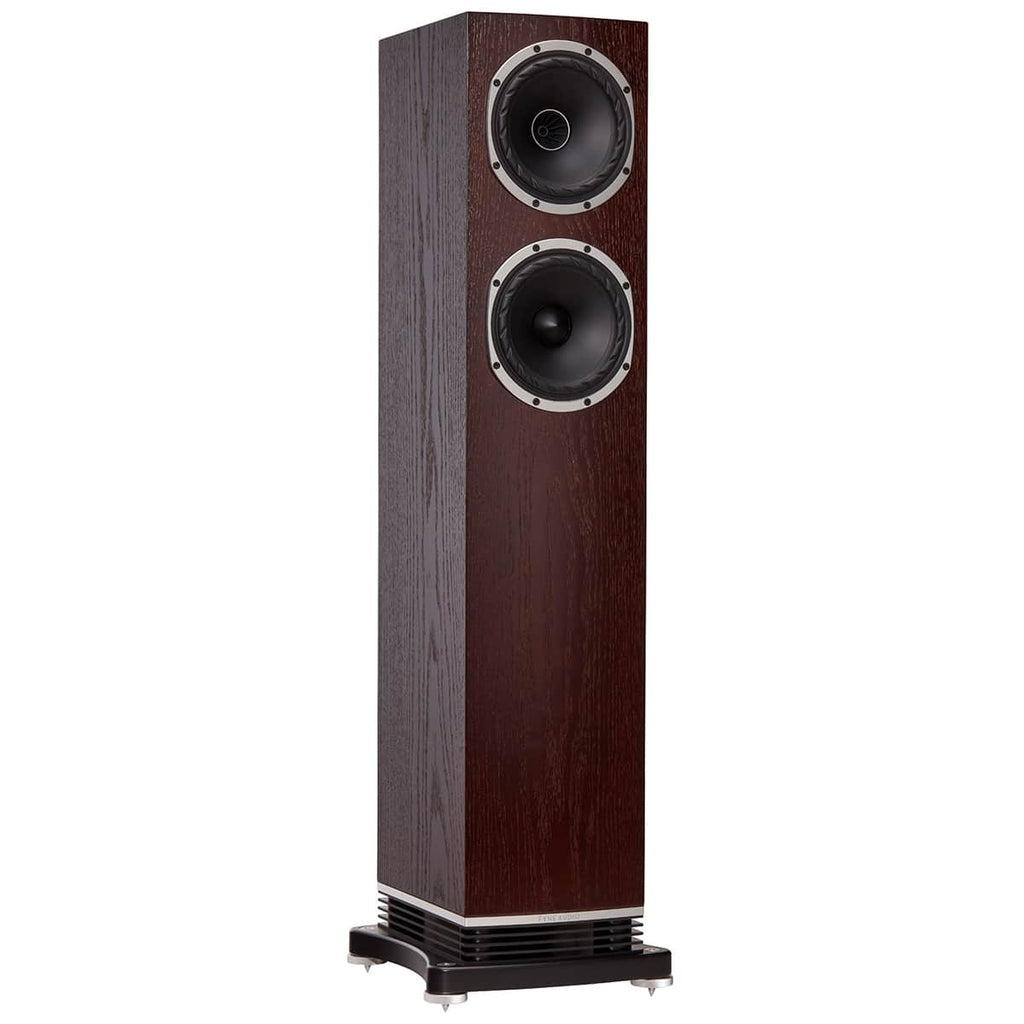

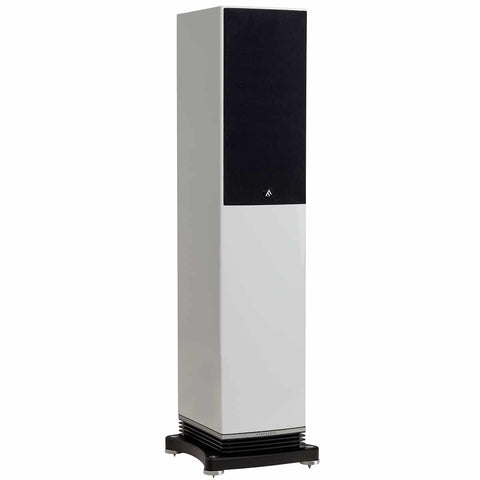

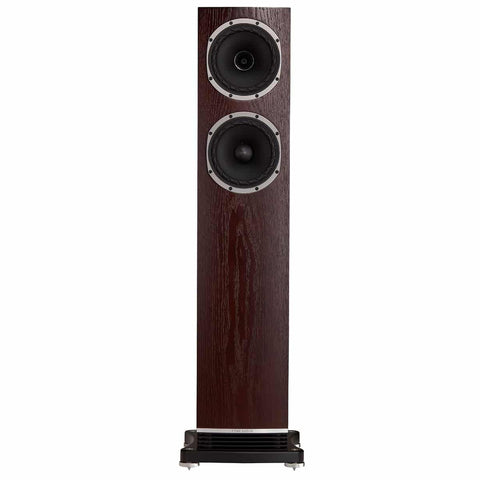

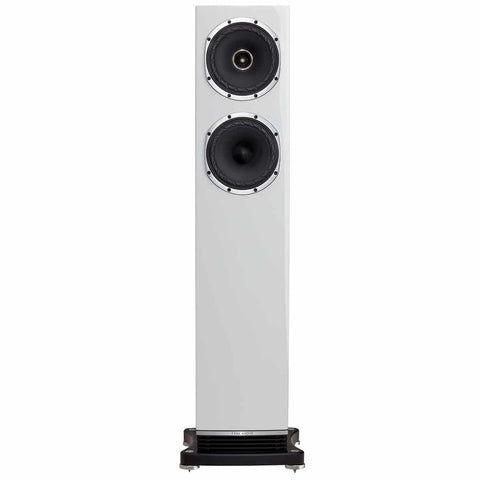

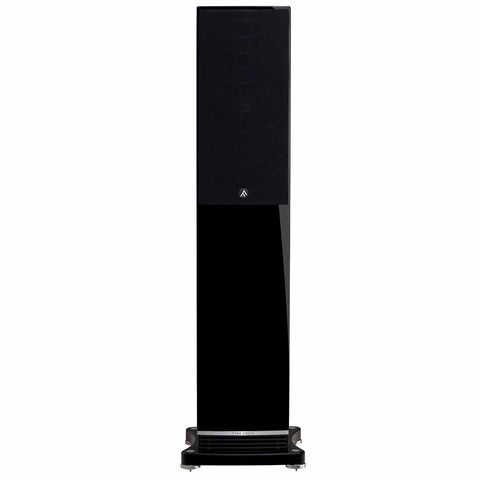

The luxuriously finished, contemporary styled cabinet is available in a choice of dark oak or black oak real wood veneer and piano gloss black or white. Enhancing its aesthetic appeal, it has a gently curved front and rear baffle which additionally benefits the acoustic performance by reducing colouration effects. The F501 is the perfect choice for a premium Home Theatre or a Hi-Fi application.
| System Type | 2 ½ way, downwards firing port, with BassTraxTMTractrix diffuser. Twin cavity coupled reflex |
| Recommended amplifier power (Watt RMS) | 35- 150 |
| Continuous power handling (Watt RMS) | 75 |
| Sensitivity (2.83 Volt @ 1m) | 90dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 36Hz- 34kHz |
| Drive unit complement | 1 x 150mm IsoFlareTM, multi-fibre bass / mid with 25mm titanium dome compression tweeter 1 x 150mm multi-fibre bass |
| Crossover frequency | 250Hz & 1.7kHz |
| Crossover type | 2nd order low pass, 1st order high pass |
| Dimensions - HxWxD | 984 x 270 x 318mm (38.7 x 10.6 x 12.5”) |
| Weight - Each | 18.9kg (41.7lb) |
| Finishes | Dark Oak / Black Oak / Piano Gloss Black / Piano Gloss White |
