NAD T 748 AV Surround Sound Receiver

  • Sale
  • $899

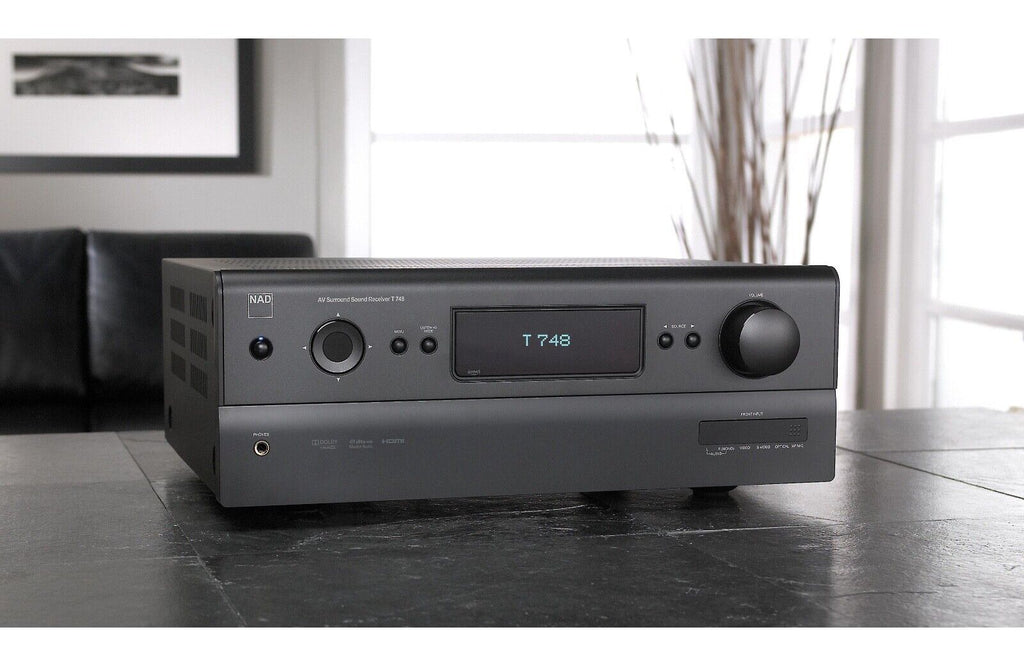

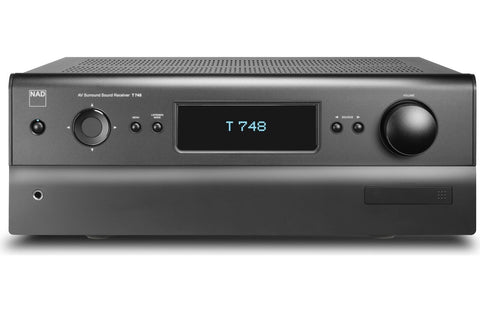

About the NAD T748



High-fidelity sound quality for your home theater

Whether your favorite artist is Sibelius or Spielberg, the versatile T748 delivers the clear, involving sound that NAD is famous for, along with the latest audio and video features for your high-def home theater. This precision-built receiver includes commanding, audiophile-quality amplification for seven speakers, plus decoding for the superior high-resolution surround sound formats available with today's HD video sources.



Convenient connections for your favorite sources

The T748's advanced video capabilities help streamline your system setup. 3D-ready HDMI inputs let you hook up your four best high-def components for easy switching. Analog-to-HDMI conversion sends all of your video sources to an HDMI-capable TV via a single-cable digital connection. And if you'd like to sit back and relax while you enjoy a few thousand favorite songs, just add NAD's iPod dock to the system.

Product highlights:

Power and Processing:

  • 7-channel amplifier
  • 80 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven
  • Dolby® TrueHD, DTS-HD™ Master Audio, Pro Logic® IIx, and DTS Neo:6 decoding
  • analog-to-HDMI video upconversion (up to 480p)
  • auto speaker calibration for precise surround sound and easier system setup (microphone included)

Digital Music Options:

  • iPod®/iPhone® integration (requires optional NAD IPD 2dock)

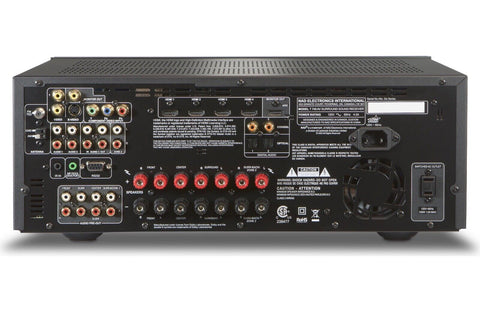

Audio Performance Features:

  • gold-plated A/V inputs/outputs
  • detachable power cord


  • 1080p-compatible HDMI digital video switching (4 in, 1 out)
  • analog video input includes:
    • two composite video
    • one component video
    • one S-video
  • digital audio inputs: 2 optical, 2 coaxial
  • 1-channel preamp output for connecting optional external amplifiers
  • 2 audio-only inputs (includes input/output loop)
  • no phono input — to connect a turntable you'll need to add a phono preamp
  • RS-232 port for automated control systems
  • 1 pair of main speaker outputs

General Features:

  • intuitive on-screen menu via all monitor outputs
  • HDMI standby pass-through allows HDMI switching without powering up receiver
  • 30 AM/FM presets

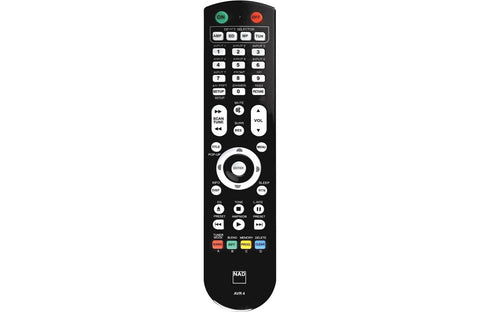

  • A/V remote
  • 17-1/8"W x 6-5/8"H x 16-11/16"D

weight: 25.3 lbs.
