WyreStorm EX-1UTP-IR-100-EDID BALUN Extender Set w/2W IR & RS232 HDMI over Cat5!

  • Sale
  • $599

  • WyreStorm HDBaseT Extender Set with 2W IR and RS232 (100m)

    Part Number EX-1UTP-IR-100-EDID

    MODEL DISCONTINUED - - - WyreStorm single cable HDBaseT™ extender sets comprise of a transmitter and receiver to lengthen distribution of uncompressed 1080p HD video @60Hz and HD multi-channel audio, high speed internet and control up to 100m (328ft) via single category cable, regardless of HDCP source encryption.

    With EDID management, HDMI and Ethernet pass-through, bidirectional control of source and display device from either location via IR and RS232, WyreStorm HDBaseT™ extenders offer incredible flexibility and stability of signal distribution combined with innovative features and an ease of use that provides solutions where stable HD transmission and control over distance is required, whilst also eliminating the need for additional control and video cables on installation, whether in a residential or commercial setting.


    Designed with the typical requirements of todays installation projects in mind, the EX-1UTP-IR-40 is a highly adaptable single-cable point to point HD extender set capable of 1080p transmissions up to 40m (131ft) under ideal conditions* with wide-band IR control of source devices from remote locations.

    For even greater control and compatibility, the Transmitter features a fully adjustable EQ EDID DIP settings to encourage communication between the connected devices, while an EQ Distance Range selector on the Receiver allows the transmission signal to be optimised specifically by distance.  Both EQ switches offer fully customisable settings to fine-tune your distribution through the baluns,

    Transmitter and Receiver baluns also contain protection against ESD (electrostatic discharge) to further stabilise transmission with LEDs on the unit housing for clear power and video signal indication.  5v mains supply but baluns may also be powered through the USB port of connected devices using Wyrestorm USB to 5v power adapter (both power adapters included)

    Additionally, the EX-1UTP-IR-40 is fully cascadable, with transmission lengthened by connecting to multiple 40m extender sets for increased distribution and even greater flexibility, whatever the installation environment.

    *NOTE: ideal conditions denote cable run is within specified distance range of product, no electrical interference, the use of straight cable runs with no bends or kinks and no patch panels orwall outlets used. Please be advised that the presence of any of these factors in your installation may compromise bandwidth and signal strength.  For even longer transmission distances, RS232 control and Ethernet pass-through, please see our full Class A or Class B HDBaseT range of matrices, transmitters, receivers and extender sets.

  • Overview

    The EX-1UTP-100-POH and EX-1UTP-IR-EDID extenders retain the rock-solid reliability of HDBaseT™ transmission technology with bidirectional control of source and display from either location via IR and RS232. Both models contain EDID management to manually handle device communication issues during installation and include the added advantage of 1:2 HDMI splitting capabilities to duplicate the receiver HDMI output, allowing connection to an additional display or projector.

    Ethernet pass-through allow both models to be fully cascaded up to 7 times to further expand distribution, while the EX-1UTP-100-POH also features Power-over-HDBaseT to enable true 5-play convergence for distribution of video, audio, control, Ethernet and Power through a single Cat5e/6 cable.

    With the transmitter connected to the mains and power passed along the length of the Cat cable to the receiver, no power access is required at the display for ease if installation and connection. Specifications


  • EDID management is also included for the further aid communication between connected devices and allow custom settings to tailor the installation to the requirements of the devices connected.
  • For added flexibility, 1:2 HDMI splitting capabilities have been added to double your simultaneous outputs, allowing for extra display or projector connection.
  • Single cable solution for extension of full HD audio/ video, RS232, 2-Way IR and 10/100 Ethernet
  • Robust HDBaseT transmission technology far more stable and resistant to electrostatic interference than conventional HD distribution over UTP
  • HDMI v1.4 with full 3D compatibility - frame packing/sequential (Blu-Ray) and interlaced Stereoscopic (satellite/cable broadcasts)
  • Supports all high definition resolutions: 1080p, 1080i, 720p and screen refresh rates of 24Hz, 30Hz, 50Hz and 60Hz
  • Fully supports 48bit Deep Colour
  • Uncompressed HD and multi-channel audio
  • Automatically adjusts feedback, equalisation and amplification
  • Supports constant HDCP to prevent screen drop-outs when operating devices
  • Control signals can be sent between source device and display via 2-way IR
  • 1080p up to 100m (328ft) range using Cat5e/6
  • UTP (including 3D applications) - control of source and display possible from either location
  • 10/100 BaseT Ethernet
  • Can be cascaded up to 7 times (700m / 2300ft)
  • HDCP compliant
  • 10.2Gbps bandwidth output capacity
  • RS232 compatible with open source drivers/protocols available for market leading third party control systems

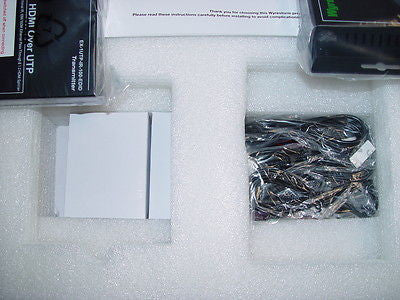

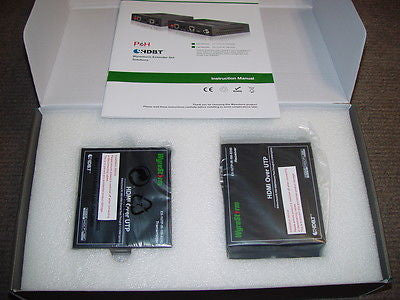

In the Box

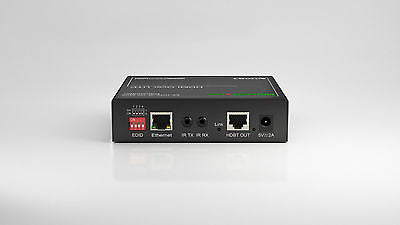

  • 1 x Wyrestorm EX-1UTP-IR-100-EDID TRANSMITTER main unit

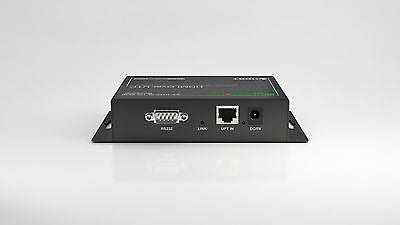

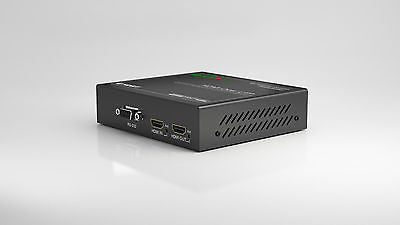

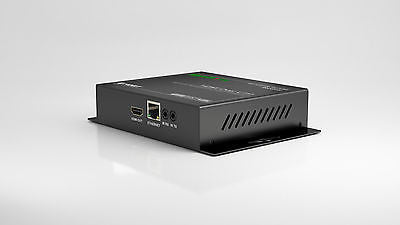

  • 1 x Wyrestorm EX-1UTP-IR-100-EDID RECEIVER main unit
  • 1 x printed installation guide (also downloadable from website product page)
  • 2 x pairs of mounting brackets
  • 2 x 5vDC power supply
  • 1 x wide-band IR TX Emitter (small/round) for attachment to Input device
  • 1 x wide-band IR RX Receiver (larger/rectangular) for attachment to Display (IR frequency range: 30KHz to 56KHz)

  • Specifications
  • 119mm/4.69" x 105mm/4.15" x 28mm/1.10"

-5 to +35°C (-41 to +95°F)
5 to 90 % RH (no condensation)
0.5-1.0 volts p-p
5 volts p-p (TTL)
1080p 48bit Deep Colour
100m / 328ft
DTV/HDTV: 1080p/1080i/720p/575p/480p/576i/480i DVI VESA: 1280x1024/1920x1200
HDMI 1.4+HDCP (repeating source to sink)
DTS-HD, Dolby-HD (repeating source to sink)
5VDC - from mains
5 Watts Max.

Suggested Retail :$699.00
