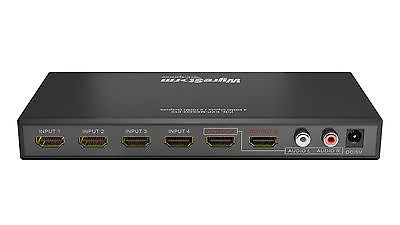

WyreStorm Express™ EXP-MX0402-010 4x2 HDMI Matrix Switcher with Remote

  • Sale
  • $99.95



WyreStorm Express™ 4x2 HDMI Matrix Switcher with Remote

Part Number EXP-MX0402-010

WyreStorm Express EXP-MX0402-010 Standard Matrix delivers reliable HD distribution between multiple video sources and TV displays, including IR extension.

The ideal HDmatrix switcher offers an effectiveand economic entry-level solution for a home or small-scale video setup.

  • Plug in and play 4 x 2 matrix switch perfect for home or other small scale AV setups.
  • Connect up to 4 HDMI video sources (satellite or cable boxes, DVD, gaming devices); and distribute content simultaneously to up to 2 displays via HDMI cables.
  • Capable of full 1080p HD video and HD multi-channel audio distribution
  • Simple video source selection and control using the front panel or IR remote

Overview

The WyreStorm Express EXP-MX0402-010 is a simple yet effective 4 input to 2 output HD matrix switcher designed for home or small-scale retail applications.

The 4 x 2 matrix switch allows up to 4 HDMI video sources to be connected into the one switch and then distribute full 1080p HD video and HD multichannel audio simultaneously to up to 2 displays over standard HDMI cables (with an output bandwidth of 6.75 Gbps over HDMI).

Simply plug the HDMI cables from the four sources to the matrix and two HDMI cables out to the displays. Select the source you wish to view using the front panel or remote and view it on the selected TV display.

It’s that easy!

FEATURES:

  • Allows inputs from 4 HDMI audio/video devices to be simultaneously distributed to up to two HDMI display devices, such as TV, AVR, digital signage panel, HDTV or digital projector
  • Simple plug-and-play connection for easy connection - no set up / drivers / software required
  • Compact, durable design for unobtrusive installation
  • Supports high definition HDMI resolutions, including 1080p, 1080i, 720p at 24Hz and other standard video formats
  • Simple push-button source selection for each HDMI Output
  • IR window and remote control handset included
  • LED input indication for visual confirmation of source selection
  • Analogue stereo audio connection
  • Automatically negotiates EDID signals from display for seamless communication between devices
  • Each port supports both HDMI and DVI inputs
  • Fully HDCP compliant
  • HDMI 1.3bv
  • Full 3D support – frame packing/sequential – Blu-Ray and stereoscopic – satellite/cable broadcasts)
  • Signal transmission rate 6.75Gbps
  • DC 5V/2A power supply (included)
  • 1 Year Warranty

IN THE BOX

1 x WyreStorm Express EXP-MX0402-010 4x2 matrix switch

1 x 5VDC power supply

1 x Remote control handset

 1 x Installation manual

Specifications:

197mm / 7.75" x 24mm / 0.95" x 108mm /4.25" (with front handles)
1.25Kg / 2.75lb
-5 to +35°C (-41 to +95 °F)
5 to 90 % RH (no condensation)
6.75Gbps
0.5-1.0 volts p-p
5 volts p-p (TTL)
1080p 24bit colour depth
HDMI transmission 15m / 49ft max. (24 AWG HDMI Cable), 10m / 33ft (28 AWG HDMI Cable) - if further distances are required, please use a WyreStorm HDMI repeater or consider a WyreStorm HDMI extender device
DTV/HDTV: 1080p/1080i/720p/576p/480p/576i/480i
HDMI 1.3b version with full 3D - frame packing/sequential (Blu-Ray). Interlaced Stereoscopic (Satellite/cable)
DTS-HD, Dolby HD, analogue stereo
5VDC - from mains.
10Watts (Max.)
34.1

Retail :$129.95



Buy It Now :$99.95
