WyreStorm Express™ 5x1 HDMI Switcher with Remote

Part Number EXP-SW-0501

More inputs means more options with the WyreStorm Express™ EXP-SW-0501 HDMI switcher for the quick and easy switching of up to five HDMI sources to a single HDMI output with control from both the front panel or included IR remote control.

Supporting High Definition audio and all video formats up to 1080p/24Hz with full 3D support, the EXP-SW-0501 switcher is the perfect solution for reliable, plug-and-play HD distributions that require just that little bit more.

Key Features:

Connect up to five HDMI devices to a single input on your TV

Switch between any three sources at the same time

Full 1080p HD video and HD audio compliant

Simple plug-and-play connection and push button operation

Features

Simple plug-and-play connection - no set up / drivers / software required

Allows up to 5 HDMI audio/video devices to be switched to one HDMI display device, such as digital signage panel, HDTV or digital projector

Automatically negotiates EDID signals from display for seamless communication between devices

Supports HD audio

Supports high definition HDMI resolutions, including 1080p, 1080i, 720p at 24Hz and other standard video formats

Each port supports both HDMI and DVI inputs

Supports UXVGA resolutions up to 1920x1200

Dual switching control via front panel and IR - infrared handset supplied for remote control switching

Fully HDCP compliant

HDMI V1.3b

Full 3D support – frame packing/sequential – Blu-ray, stereoscopic – satellite/cable broadcasts)

Signal transmission rate 6.75Gbps

1 year warranty

The WyreStorm Express™ EXP-SW-0501 enables quick and easy switching of up to five HDMI sources to a single HDMI display device such as HDTV, digital projector or digital dignage panel, with control from both the front panel of the switcher or with the included IR remote control.

Supporting High Definition audio and all video formats up to 1080p/24Hz including full 3D, the EXP-SW-0501 switcher also supports UXVGA resolutions up to 1920x1200 with each port compatible with both HDMI and DVI inputs.

Whether running out HDMI ports on a TV or creating a small AV distribution, if switching between multiple HDMI inputs to a single HDMI output is required, the WyreStorm EXP-SW-0501 is the perfect solution for reliable, plug-and-play HD distribution.

WyreStorm Express is a plug and play range of HDMI distribution solutions for the home or light commercial applications that make everyday video connectivity and setup simple.

WyreStorm Express products offer straight-forward, inexpensive-yet-reliable HD switching, distribution and cable solutions; ideal for integrating the latest video source components, such as satellite/cable boxes, Blu-ray and DVD, the latest gaming cosoles and digital media content stored/streamed via HDD to LED/plasma displays or digital projectors.

In the Box

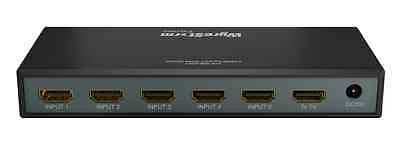

1 x WyreStorm Express™ EXP-SW-0501 5x1 HDMI Switcher

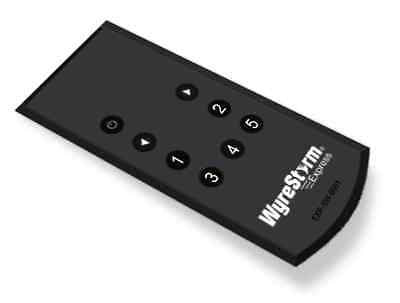

1 x EXP-SW-0501 remote control handset

1 x 5V DC/1A universal power supply

Specifications

Dimensions (WxHxD): 162mm / 6.4" x 19mm / 0.75" x 69mm / 2.7"

Weight (Kg): 0.95Kg / 2.1lb

Operating Temperature Range: -5 to +35°C (-41 to +95 °F)

Operating Humidity Range: 5 to 90 % RH (no condensation)

Video Amplifier Bandwidth: 6.75Gbps

Input Video Signal: 0.5-1.0 volts p-p, Resistance: 75Q

Input DDC Signal: 5 volts p-p (TTL)

Maximum Single Link Range: 1080p 24bit colour depth

Transmission distance: HDMI transmission 15m / 49ft max. (24 AWG HDMI Cable), 10m / 33ft (28 AWG HDMI Cable) - if further distances are required, please use a WyreStorm HDMI repeater or consider a WyreStorm HDMI extender device

Video Format Supported:

DTV/HDTV: 1080p/1080i/720p/576p/480p/576i/480i Supports UXVGA resolutions up to 1920x1200

Output Video:

HDMI V1.3b version with full 3D - frame packing/sequential (Blu-Ray). Interlaced Stereoscopic (Satellite/cable)

Audio Format Supported: DTS-HD, Dolby HD

Power Supply: 5VDC - from mains. Max Power: 1.0w

Power Consumption: 4 watts (max.)

BTU Rating (British Thermal Unit): N/A

Rack Space Required: N/A
