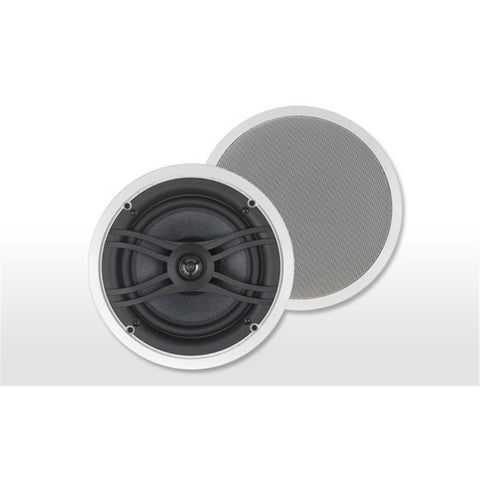

Yamaha NS-IW560C
Versatile In-Ceiling Speaker System Brings Together Superior Sound Quality and Easy Installation for the Custom Professional
MAIN FEATURES
・New Natural Sound Ceiling Speaker System with a Quality for Custom Applications
・High-Capacity, High-Quality Customized Crossover Network
・8" Kevlar Cone Woofers
・1" Titanium Dome Tweeter
・Swivel Tweeter
・Gold-Plated Push-Type Speaker Terminals
・150W Maximum Input Capability
・Paintable Grill with Protective Cover Included
For Custom Installation, High Audio Quality and Easy to Install
Using high audio quality materials for drivers (Kevlar for the woofer, Titanium for the tweeter) can deliver you a professional audio quality. And also it's easy to install with a gold plated push type speaker terminals, paintable grills/frames, a cut-out template and a paint protective cover.
Swivel Tweeter
You can swivel the tweeter and the midrange diver to " aim" the high frequency sounds toward the main listening position. To do so, simply press on the edge of the tweeter to change the direction it faces.
Low Distortion, High Capacity Customized Crossover Network
The NS-IW560C features a customized high quality crossover network to ensure maximum sound performance. The crossover circuit is designed to minimize distortion and has much capacity preventing the deterioration of transients as they pass through the network.
NS-IW560C |
|
---|---|
Specifications |
|
Recommended Usage |
In-Ceiling Front / Surround Speakers |
Type |
2-Way In-Ceiling |
Woofers |
8" Kevlar Cone Woofer |
Tweeters |
1" Titanium Dome Tweeter |
Swivel Tweeter and Midrange Driver |
Yes (Tweeter) |
Paintable Grill with Protective Cover Included |
Yes |
Frequency Response |
45 Hz - 28 kHz |
Sensitivity |
88 dB/2.83 V/1 m |
Input Power (Maximum / Nominal) |
150W / 50W |
Impedance |
8 Ohms |
Product Dimensions (W x H x D) |
10-9/32" x 4-13/32" |
Mounting Depth |
3-23/32" |
Product Weight (lbs. each) |
4.5 |
